PRODUCTS / DINGYOU
Stage hoists, servo lifting
& control systems.
Compare Dingyou electric chain hoists, servo CNC hoists and control systems for touring productions and permanent venues. Start with the required load, movement and operating environment, then define the complete equipment package.
TOURING & LIVE EVENTS
DY+ Stage Hoists
Compact electric chain hoists for touring productions, stage structures and lighting rigs.
Explore range ↗
PROGRAMMABLE STAGE MOTION
Servo CNC Hoists
Servo lifting, coordinated motion and flexible control for creative stage installations.
Explore range ↗
FROM SINGLE POINT TO SYSTEM
Hoist Controllers
Portable controllers and PLC touchscreen systems for stage lifting applications.
Explore range ↗
COMPLETE YOUR SYSTEM
Rigging accessories
& manual hoists.
Support your installation with hand chain hoists, shackles, beam clamps and lifting slings.
SL hand chain hoists are listed in 1,000, 2,000, 3,000 and 5,000 kg capacities, with a 6 m lifting height in the catalogue.
Ask about accessories ↗See all catalogue specifications ↓Stage lifting range at a glance
| Product family | Catalogue information | Include in your enquiry |
|---|---|---|
| DY+ stage hoists | 250–2,000 kg; 4 m/min; IP66 | Point loads, lifting height, power supply and quantity |
| Servo CNC hoists | Integrated or separate drives; optional load sensing | Axis count, motion brief, travel and existing console |
| Portable / PLC controllers | Knob-type or touchscreen control configurations | Hoist compatibility, channel count, wiring and operator location |
| SL hand chain hoists | 1,000 / 2,000 / 3,000 / 5,000 kg; listed lift 6 m | Capacity, lift, headroom and intended application |
Choose the product family around the job.
A hoist capacity is one part of the selection. The way the equipment moves, the operator workflow and the control arrangement help determine which range to discuss.

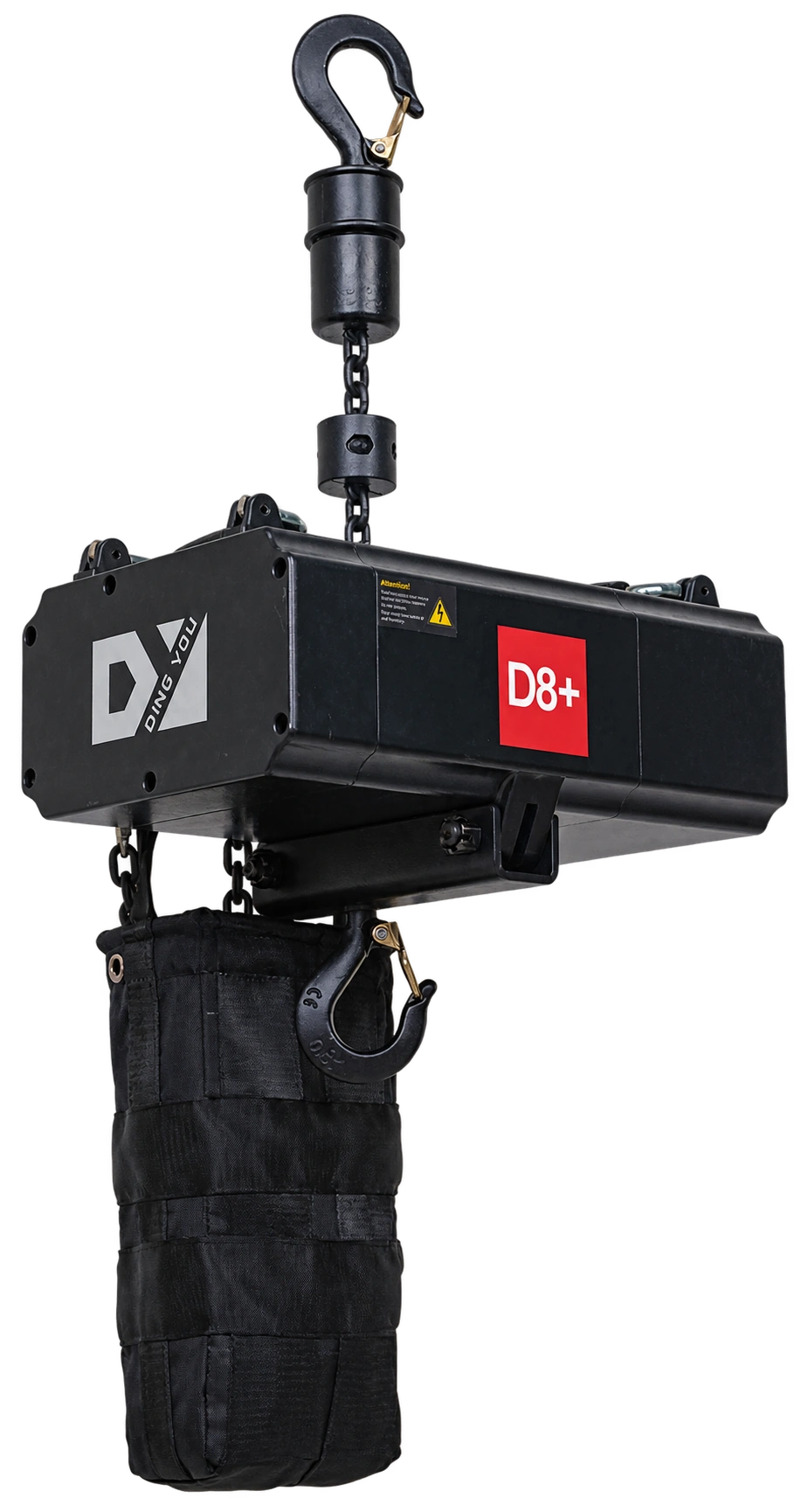

DY+ electric stage hoists
For enquiries centred on touring stage structures and lighting rigs, start with the DY+ range. The 2026 catalogue lists 250, 500, 1,000 and 2,000 kg rated loads, 4 m/min lifting speed and IP66 protection. Confirm the offered model, lifting height and brake configuration.
Servo CNC hoists
For a project involving programmed stage movement, describe the motion before selecting a servo system. Include the number of axes, load at each point, required travel and the relationship between movements. Drive architecture, console functions and optional load sensing are configuration-specific.

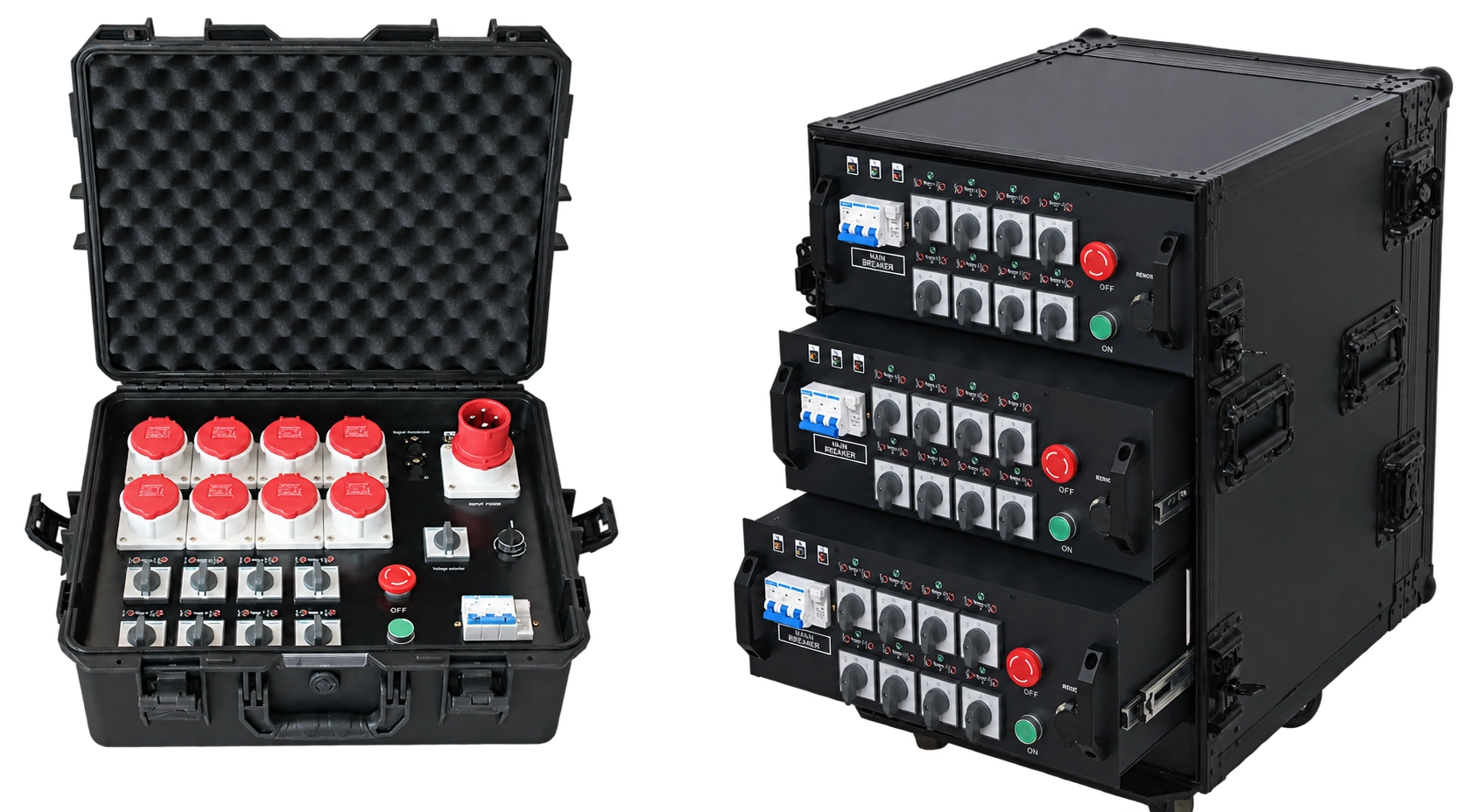

Hoist controllers
A controller enquiry should identify the hoist models, channel count, power supply, connectors and cable routes. Dingyou lists portable knob-type controllers for touring and PLC touchscreen arrangements for installations. Channel count alone does not establish electrical or functional compatibility.

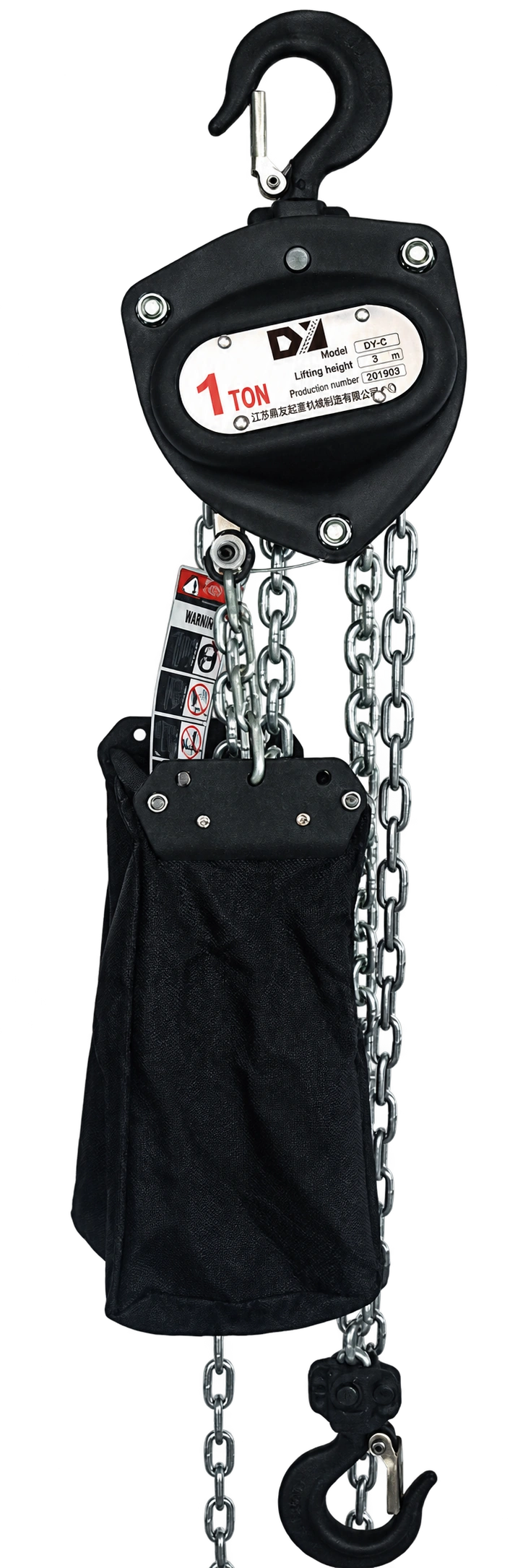

Manual hoists and rigging accessories
The catalogue also includes SL hand chain hoists, shackles, beam clamps and lifting slings. List accessories separately in the project scope so that their capacities, connections and quantities can be checked against the rigging design.
Frequently asked questions
Which range should I enquire about first?
Use DY+ for an initial discussion about stage electric chain hoists. If the project requires programmed or coordinated movement, include the servo range in the discussion. For an existing hoist package, start with its technical details before choosing a controller.
Can hoists and controllers be quoted together?
Yes. Request an itemised project quotation covering hoists, controllers, cables, chain bags and the accessories you need. The agreed quotation defines which items are included and which are supplied by the installation team.
Are all listed features included as standard?
No. The catalogue distinguishes optional features and different configurations. Ask for a model-specific specification and a clear list of included options before placing an order.
Related guides and product information
Product information: Dingyou 2026 catalogue, DY+ printed pages 19–20, servo pages 27–30, controllers pages 37–38 and SL hand chain hoists pages 41–42.
Open the Dingyou 2026 product catalogueNeed the current specification? Ask for the documentation for the exact model and configuration in your quotation.
